Wireless SMART sensors

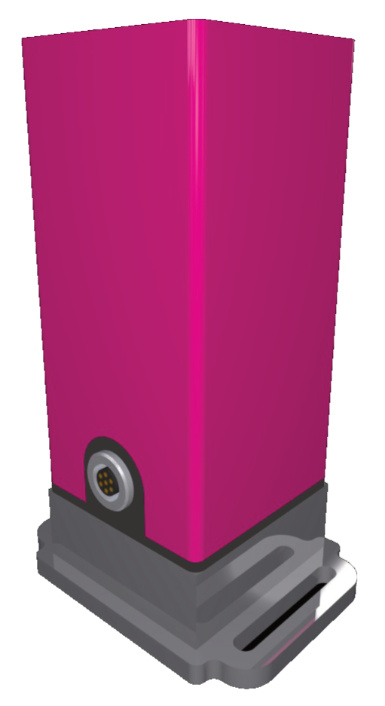

The ERL sensor / HUB has especially been designed to provide high resolution measurements without the need for wiring or external power supply. This makes ERL an ideal device for brown field systems where modification of the existing control system is not desired or to expensive.
What makes this sensor SMART or even SMARTER... the device can easily be configured and programmed to detect behavioral changes and trends as they occur in time and warn if necessary. This combines low bandwidth usage with high-resolution measurement capabilities.
The first true industrial grade wireless IIoT solutions, secure, reliable and rugged. Designed to support predictive maintenance applications.

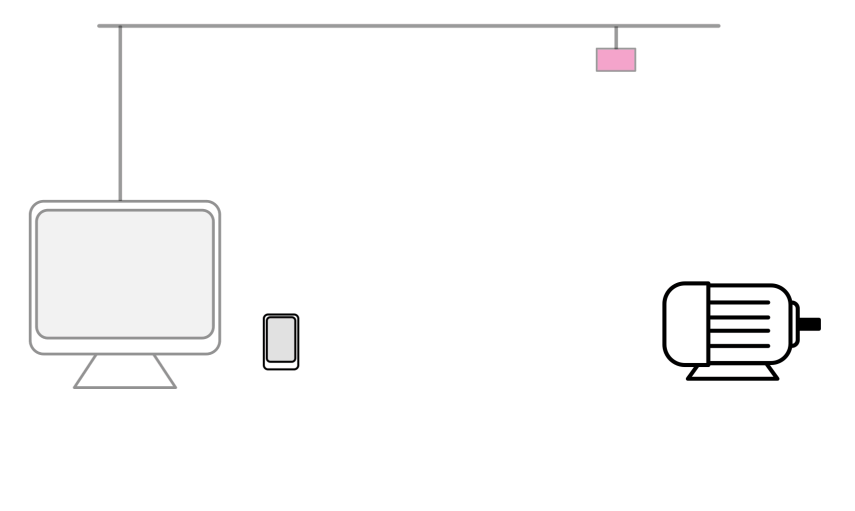

We have made it easy to connect this device directly to the cloud or to a local PLC or PC. Via a simple Bluetooth APP you define where to connect to and your done.
- Battery powered
- Wireless (WiFi, LoRa etc.)
- Internal memory upto 64Gb
- Data (pre)processing
- Send messages based on limits
- Connect upto 12 extra measurements
- IP68 (dust and water resistant)
- Applicable in Ex environments
- High resolution upto 8kHz
- Supports ProfiNET, DeviceNET, Modbus TCP/IP and I/O Link.
- Small size 100x40x40 mm

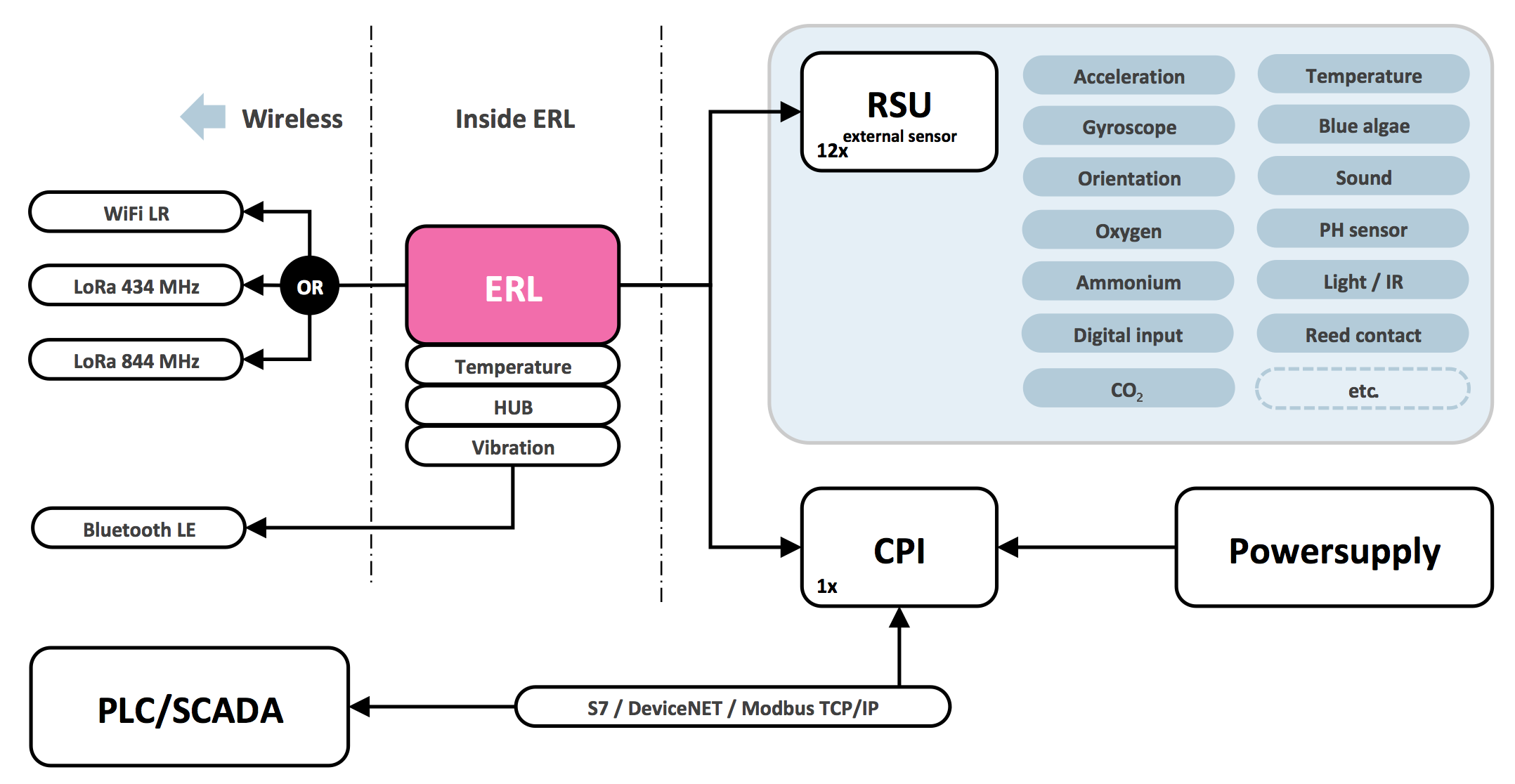

The sensor / HUB is equipped with 3D acceleration, 3D gyroscopig measurements and can be expanded with up to 12 external sensors without configuration, just connect a new node and data is collected, stored, analyzed and send to a server or the cloud when necessary. One HUB, multiple measurements
Operational Specifications
| Vibration measurement | Linear acceleration measurement range | 16 g |
| Angular rate measurement range | ±2000 dps | |
| Linear acceleration sensitivity | 0,061 mg | |
| Angular rate sensitivity | 8,75 mdps | |
| acceleration linearity / temperature | ±1,5 % | |
| angular linearity / temperature | ±2,0 % | |
| Operating temperature range | -40 up to +85 oC | |
| Temperature | Operating temperature range | -40 up to +150 oC |
| Ambient temperature | ±0,5 oC | |
| Pointed IR temperature | ±1,0 oC | |
| Power consumption | charging | 5V - 120mA |
| operating | battery / 5V – 20mA | |
| monitoring | battery / 5V – 23mA | |
| standby | battery / 20uA leaking | |
| Approvals & Certificates | certificate included for parts and assembly | CE |
| compliant on electronic parts | FCC | |
| submitted for approval | UL | |
| up to 1200mAh not applicable. | Ex | |
| Design conform, certificate for Ex and HACCP type included | HACCP | |
| submitted for approval | TUV | |
| planned 2nd quarter 2019 | KEMA | |
| planned 2nd quarter 2019 | VDE |
